Multi Purpose Forming Anvil. J2250

Description

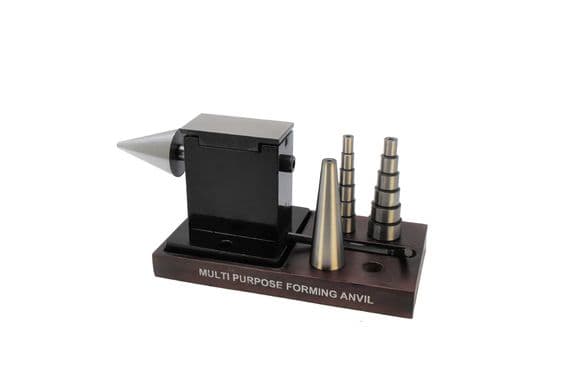

This multi-purpose anvil provides an ideal work surface for smaller forming tasks. It has a flat top surface and interchangeable mandrels that are designed for a variety of shaping needs.
The anvil can be used for shaping rings and thin bracelets and for forming curved pieces for earrings, etc.
There are two stepped and two tapered mandrel shapes.
Approx dimensions:
Narrow Stepped Mandrel :
- Diameter of widest step : 16.4mm
- Diameter of narrowest step : 8.4mm
- Length without tang : 78mm
Wider Stepped Mandrel :
- Diameter of widest step : 26.6mm
- Diameter of narrowest step : 10.5mm
- Length without tang : 78mm
Tall Slim Tapered Mandrel:
- Diameter of widest point : 25.3mm
- Diameter of narrowest point : 10mm
- Length without tang : 78mm
Short Wide Tapered Mandrel :
- Diameter of widest point : 38mm
- Diameter of narrowest point : 6mm
- Length without tang : 60mm
Mandrels are attached by a screw that is tightened from the opposite end of the anvil by an Allen key
The anvil can be attached to a bench using the pre-drilled mounting holes on its base.
One Allen key and a mounting bolt are included.
The flat top plate and forming mandrels are made from hardened steel.

EAN: 5021954719546
