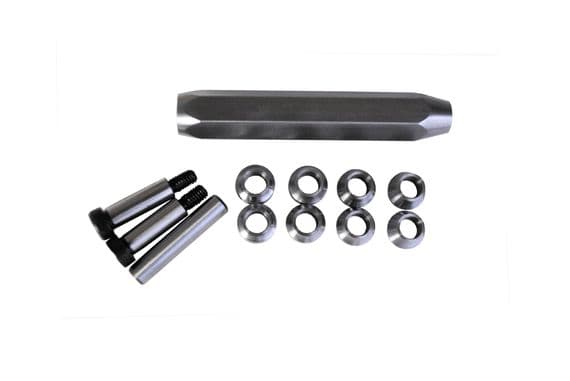

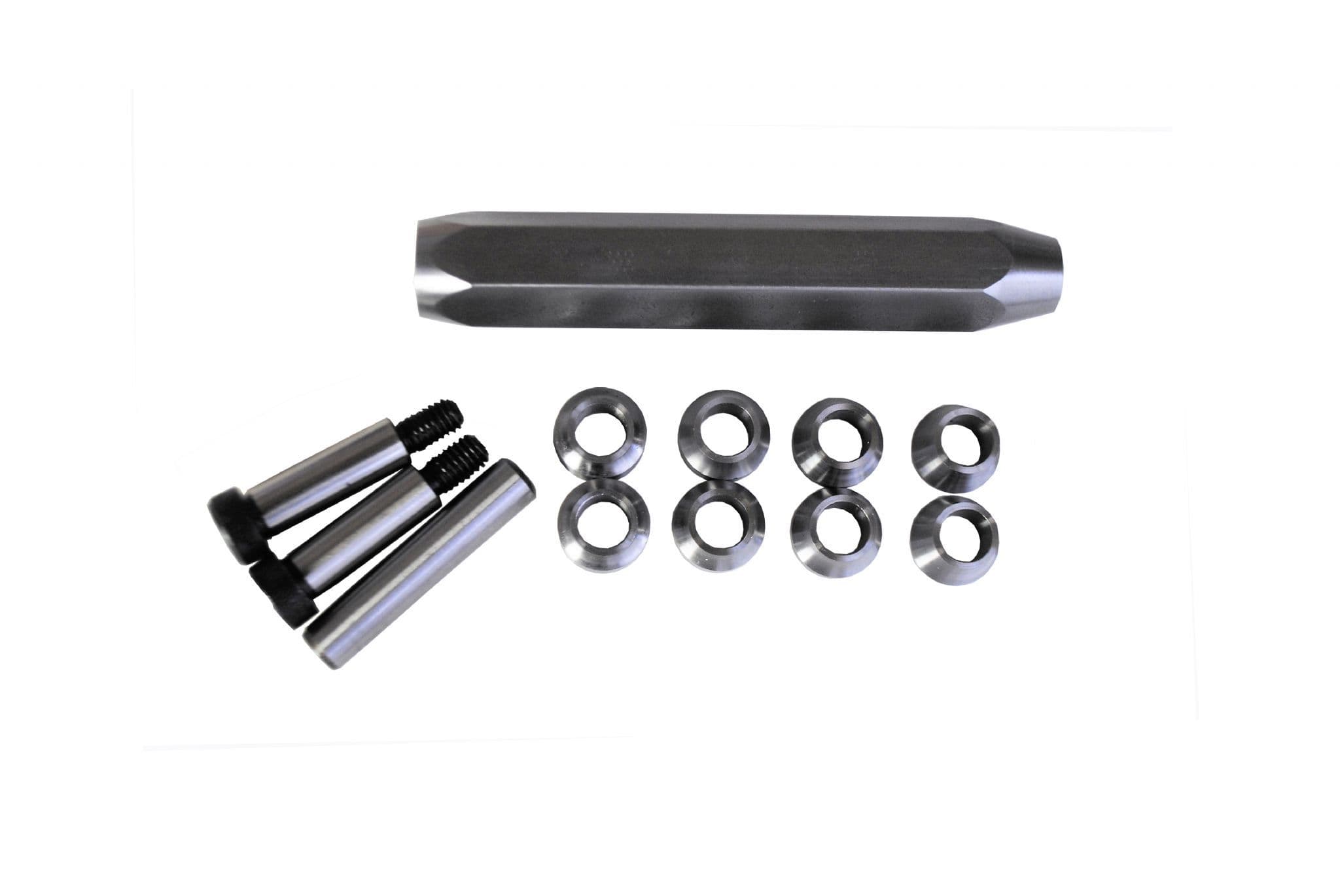

Ring Forming Split Die Set. J2253
- Steel ring forming split die set suitable for use with soft metals.
- This set includes four split die pairs which when placed together form anticlastic dies for forming rings.
- The size of the dies when placed together in pairs is approximately 25mm long x 12mm diameter at narrowest point.
- The bevelled working area of each pair of dies when placed together measures approximately:
- Extra wide : 22mm
- Original wide: 18mm
- Original Narrow: 12mm
- Extra Narrow: 7mm
- Overall size of the tool without shoulder bolts is 152mm x 30mm.
- Main body of the tool is a hexagonal shape to give a secure grip when used in a vice.
- A dowel pin is also supplied to allow ring forming when used in a hydraulic press.
